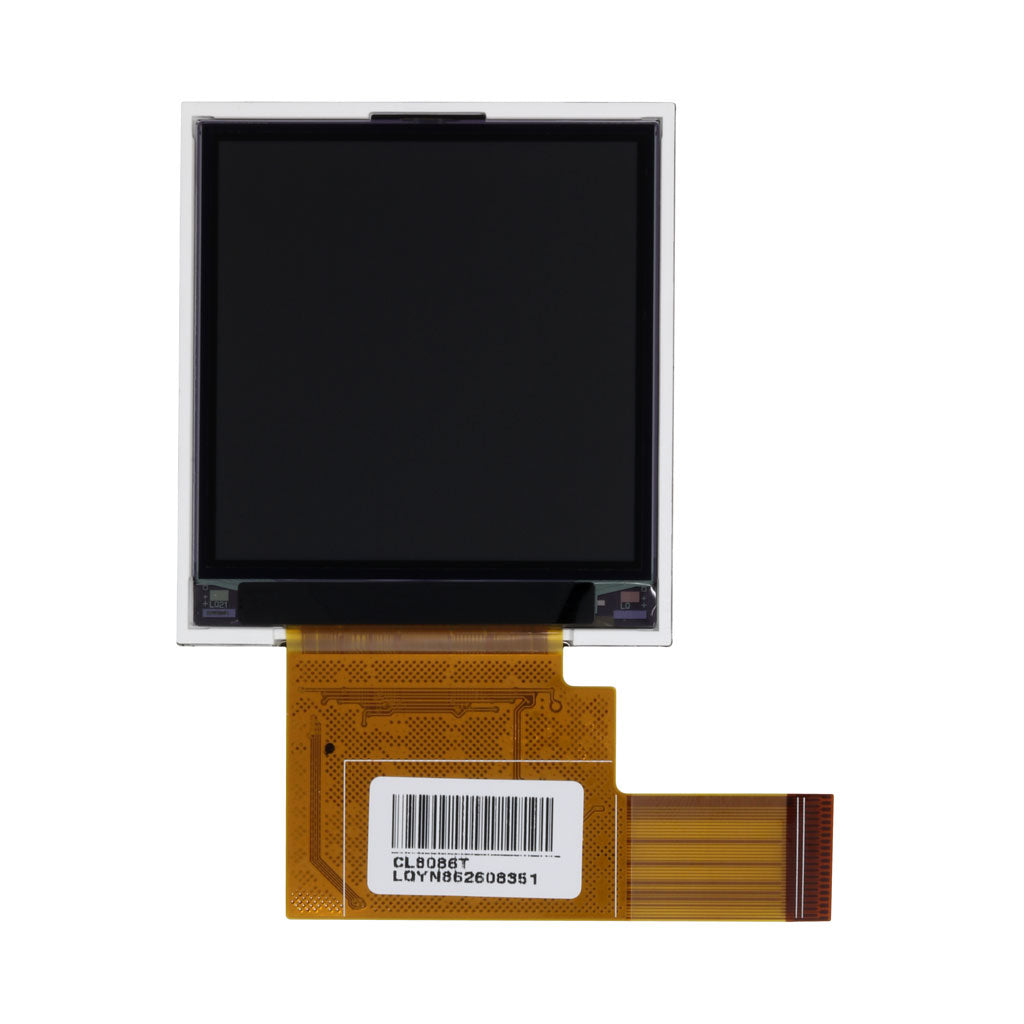

Game Boy Color and Pocket TFT LCD Replacement

Game Boy Color and Pocket TFT LCD Replacement

Regular price $10.99
Regular price $10.99 Sale price $10.99
Sale Sold out
Shipping calculated at checkout.

A single TFT LCD replacement for TFT kits. NOT a replacement LCD for original LCD kits. It is only a replacement LCD compatible with aftermarket TFT LCD kits. Compatible with:

INCLUDED:

  • 1x TFT LCD

DOCUMENTATION:

NOTES:

  • This LCD is NOT a direct replacement for an original (OEM) LCD. It is only a replacement LCD for specific aftermarket IPS LCD kits.

WARNINGS:

  • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
  • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.

LCD SPECIFICATIONS:

Screen Size
2.2inch
Screen Type
TN
Resolution
320X320
Pixel
0.123X0.123
Display Dimension
39.36X39.36
Viewable Dimension
42.4X42.4
Outside Dimension
51.8X47.4
Luminance
160
Contrast Ratio
120
Viewable Angle
40/50/90/90
Operating Mode
RGB565
Best Viewing Angle
6~7 0'clock
Response Time
40msec
Color arrangement
RGB
Optical Source
LED
Touch Panel
RTP
Interface
RGB565
Driving Voltage
3.0V
Operating Environment
-20 +70 ℃
