Dreamcast Replacement Power Supply USBC Type C Mod - Robot_Retro

Upgrade your Dreamcast's power supply with the Dreamcast Replacement Power Supply. Compatible with all models, this efficient and safe solution is powered by a 15v or 20v Power Delivery USBC charger. With a 90-95% efficiency rate, low signal noise and heat, and no flashing LEDs, this drop-in solution is perfect for clear shells. Plus, the included 3D printed spacer allows for easy installation.

• Powered from a 15v or 20v Power Delivery USBC charger. Most 30W charger USBC will work.
• Low signal noise and heat.
• Drop in solution. No soldering, wires or complicated install required.
• Works with all Dreamcast models (PAL, Japanese, etc)
• Works with GDEmu.
• V1.1 includes 5V and 12V fan headers. Note, the Dreamcast still needs a fan connected into the OEM port in order for the console to boot.

INCLUDED:

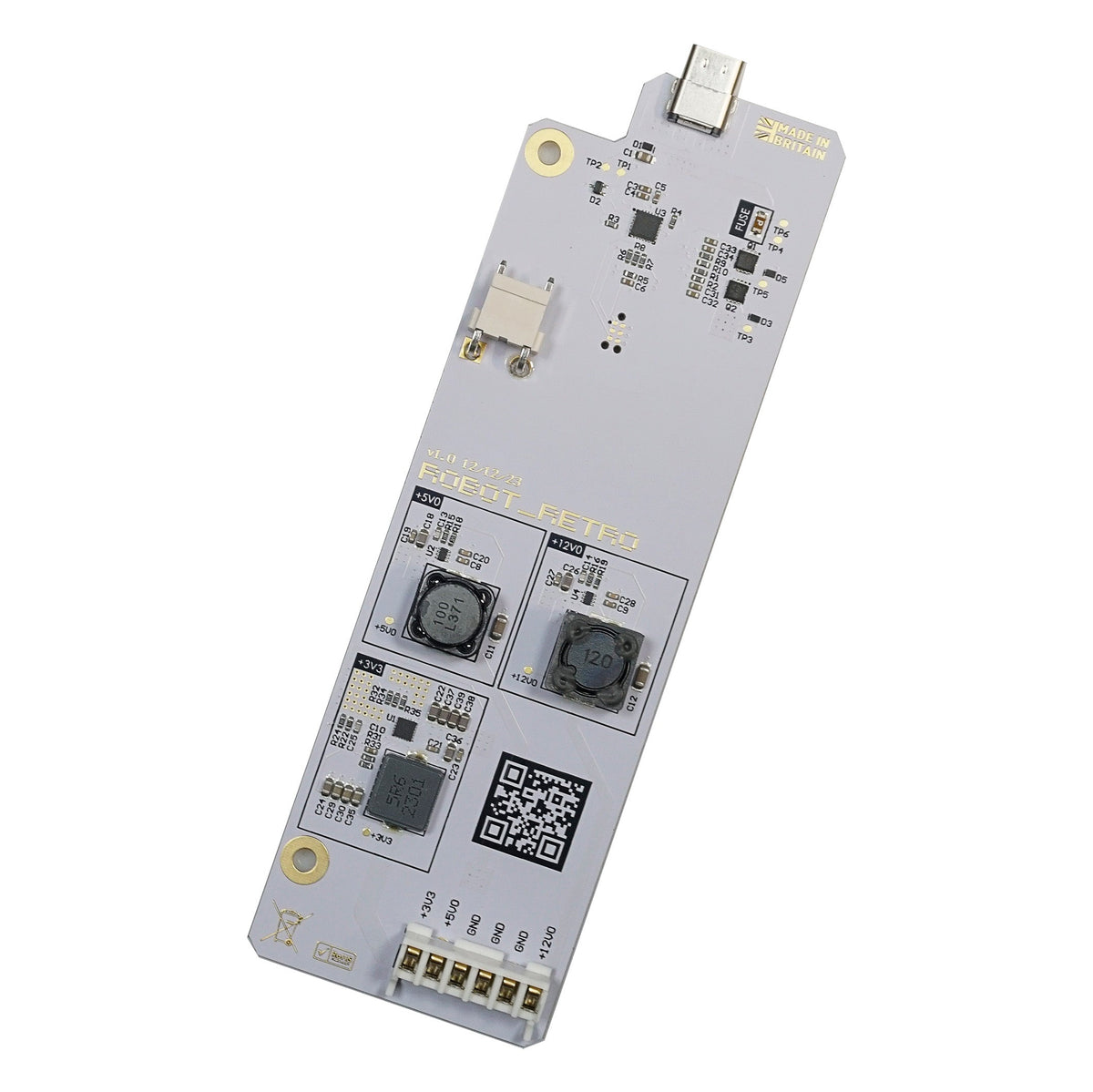

• 1 x Dreamcast Replacement Power Supply USBC Type C PCD

• 1x Black Spacer

PAIRS WELL WITH:

• 3D Spacer for Dreamcast Replacement Power Supply USBC Type C Mod
• 65W Type-C Power Supply

• Replacement Console Shell for Sega Dreamcast

DOCUMENTATION:

• 3D Printed Spacer File

Installation:

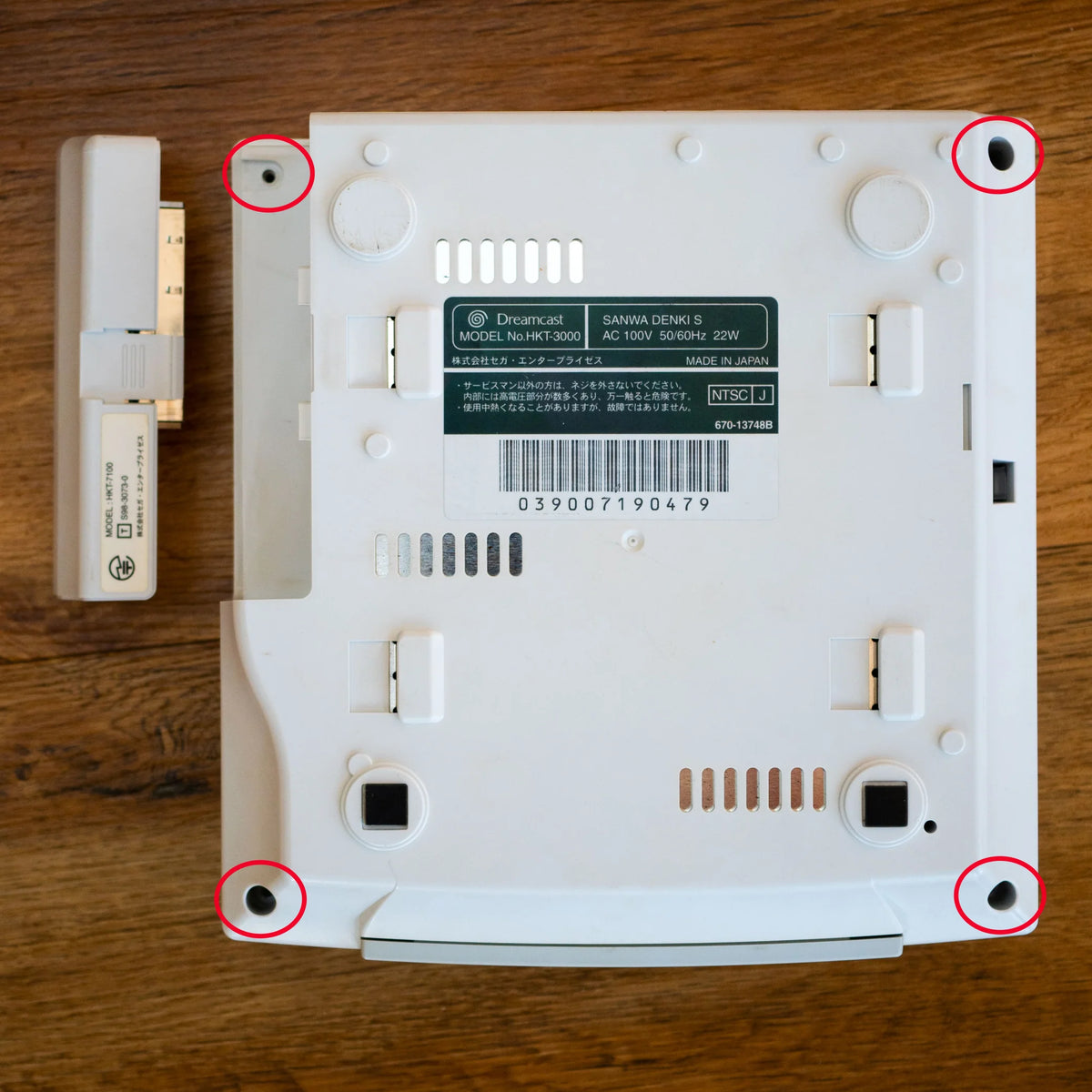

1. Unscrew the four bottom Dreamcast screws as shown in the photo.

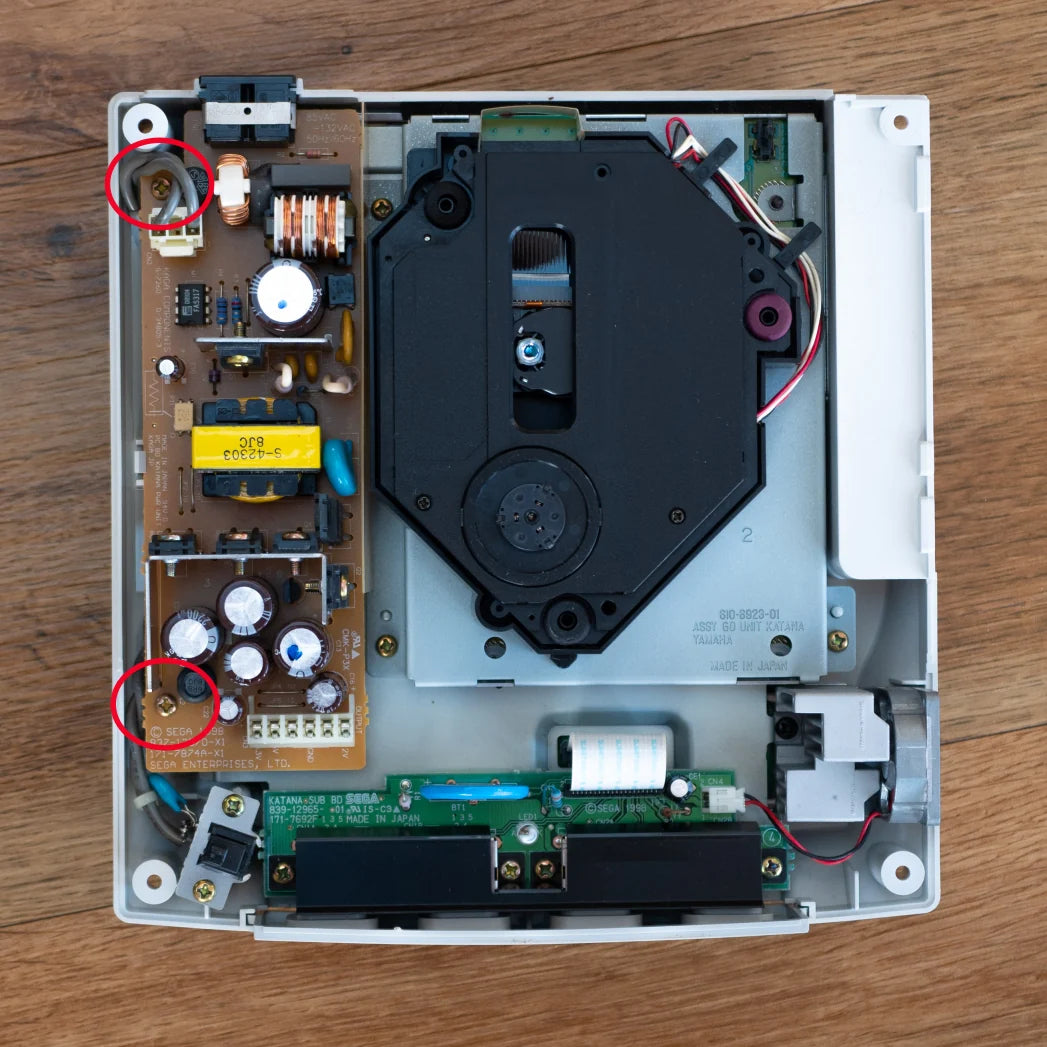

2. Remove the top lid and then remove the two power board screws (see photos).

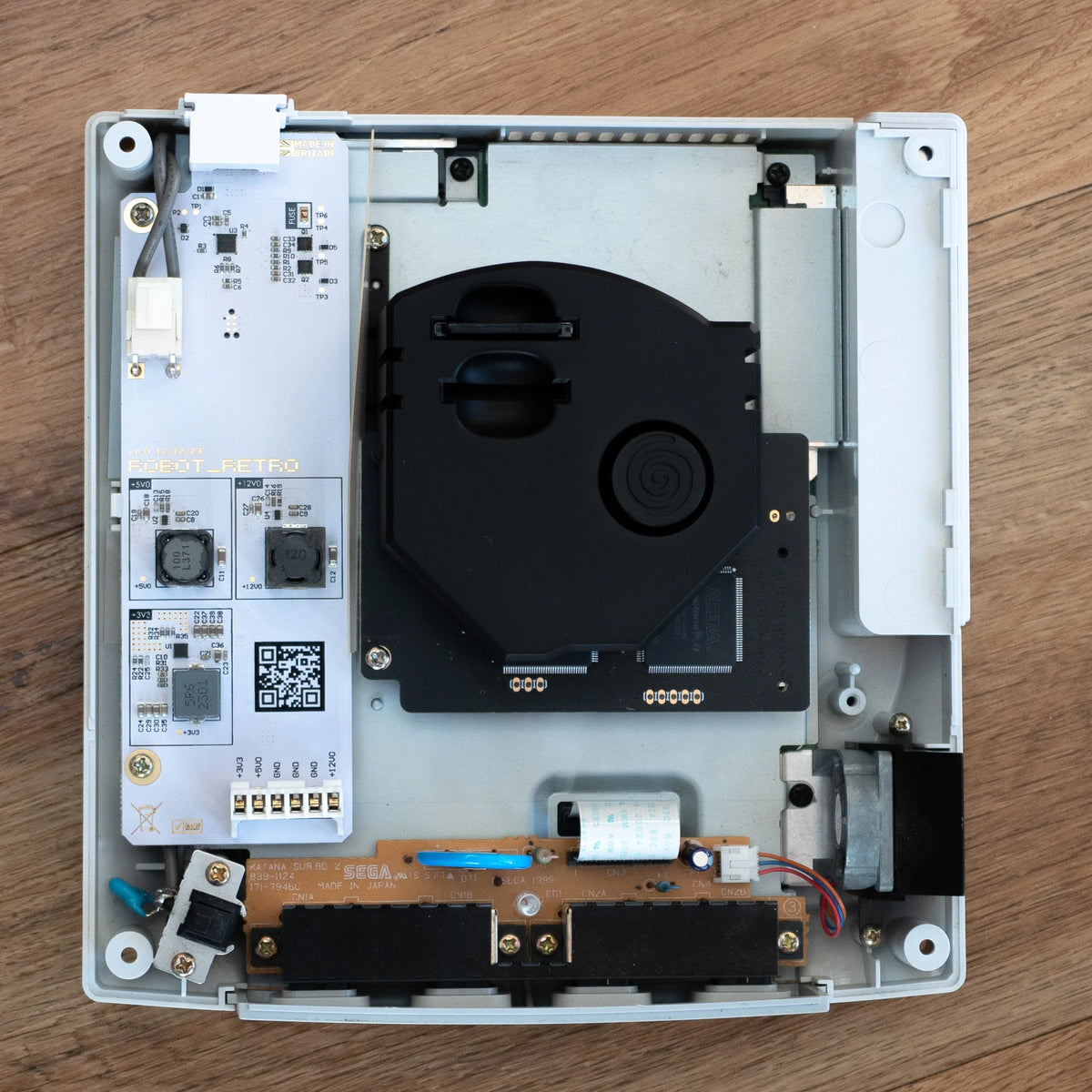

3. Fit the robot_retro board in exactly the same way as the OEM power board was removed.

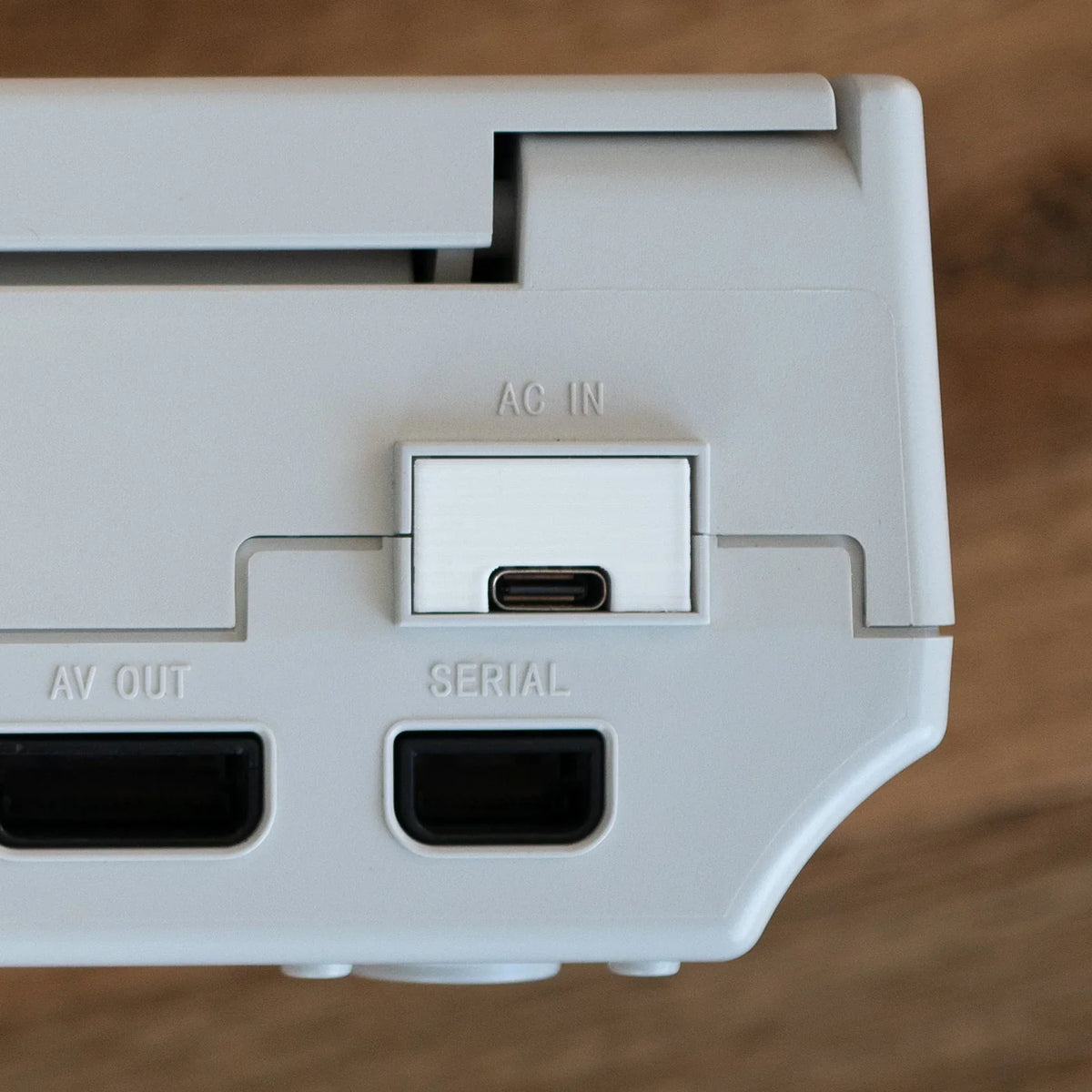

4. Fit 3D printer USBC spacer.
5. Reassemble the console.

NOTES:

• After install if you are having power issues, please check your power supply and USB-C cables. Robot_Retro recommends this wall charger for the best power delivery.
• Recommended to retain the plastic insulation cover that comes with the OEM console.
