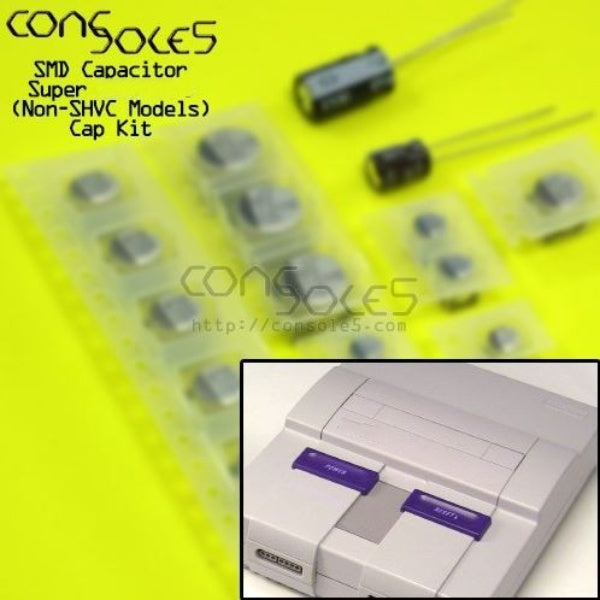

Console 5 Capacitor Kit for Super Nintendo / SFC

SMD & Leaded Cap kit for SHVC and Non-SHVC model Super Nintendo and SFC consoles. Check your model/board before purchasing.

Simply replace the capacitor with the same capacitance on the board. Its okay if the voltage rating is higher.

If you are using an authentic Nintendo SNS-002 AC adapter there is one additional 3300uF or 4700uF capacitor necessary for a full recap.

INCLUDED:

• 1x Capacitor Kit

DOCUMENTATION:

• Console5 Wiki - contains cap list and values.
• Comparisons
• SNES Model Differences

NOTES:

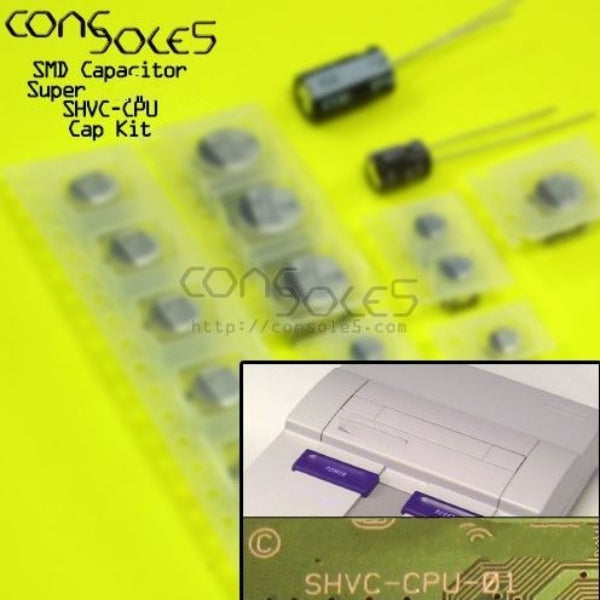

For SHVC models:

• SHVC-CPU-01
• SHVC-CPU-02

This version SNES has a separate, removable sound module.

This kit also includes the following additional caps:

• 1000uf / 25v leaded cap found in Super Famicom hardware.
• 470uf / 6.3v leaded cap to add across the ground / output terminals of the voltage regulator.

For Non-SHVC models:

• SNS-CPU-GPM
• SNS-CPU-RGB
• SNS-CPU-APU
• SNS-CPU-1CHIP

These console versions do not have a removable sound module.

This kit also includes the following additional caps:

• 1000uf / 25v leaded cap found in Super Famicom hardware.
• 470uf / 6.3v leaded cap to add across the ground / output terminals of the voltage regulator.
