AGB IPS MAX Display Laminated Kit with Logo Burner for GBA - Funnyplaying

AGB IPS MAX Display Laminated Kit with Logo Burner for GBA - Funnyplaying

$61.99
$61.99
Sale Sold out
Shipping calculated at checkout.

The AGB IPS MAX is a groundbreaking display kit designed for the Game Boy Advance, featuring a 3.2-inch full-laminated IPS screen — the largest ever for GBA mods. With a sharp 960×640 resolution and a dedicated customizable logo area, this kit combines modern clarity with personalized style. Additional features like real-time battery indicators and enhanced GBC compatibility make it the all-in-one solution for retro gaming enthusiasts.

FEATURES:

  • 3.2" IPS panel with full lamination to reduce glare and dust.
  • High resolution of 960×640 for crisp, vibrant visuals.
  • Dedicated 960×80 pixel area at the bottom for personal logos.
  • Upload your own 4-color BMP image via Type-C and Windows software.
  • 5x GBC Zoom: Play Game Boy Color games with a massively enlarged display.
  • AGS-101 Color Mode: Switch to classic color tones for an authentic retro feel.
  • Battery Indicator: Displays real-time power levels when a wire is soldered to the positive terminal.
  • Touch sensor for brightness options (single press) and OSD menu (long press).
  • OSD menu features: 10 brightness levels, pixel grid on/off, custom logo options, 4 color modes, frame blending on/off, and GBA/GBC display modes.
  • This kit only pairs with these shells from FunnyPlaying.

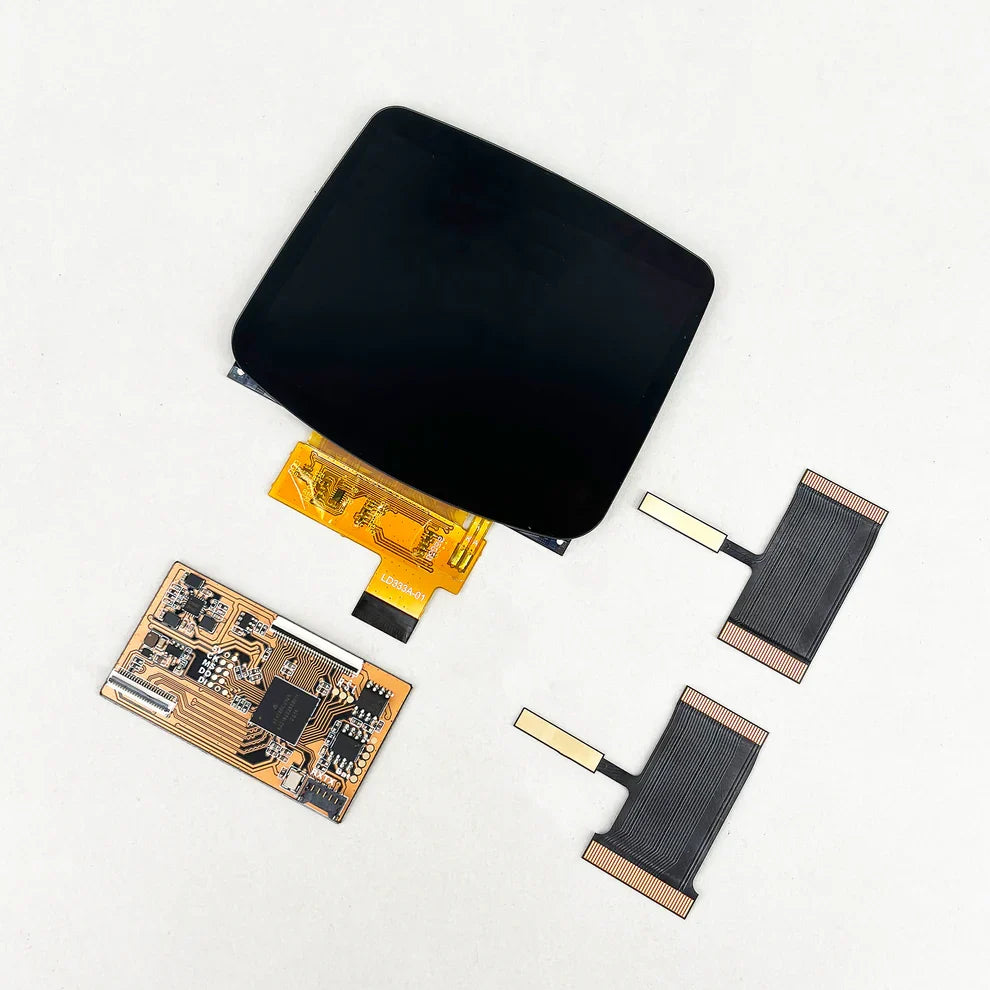

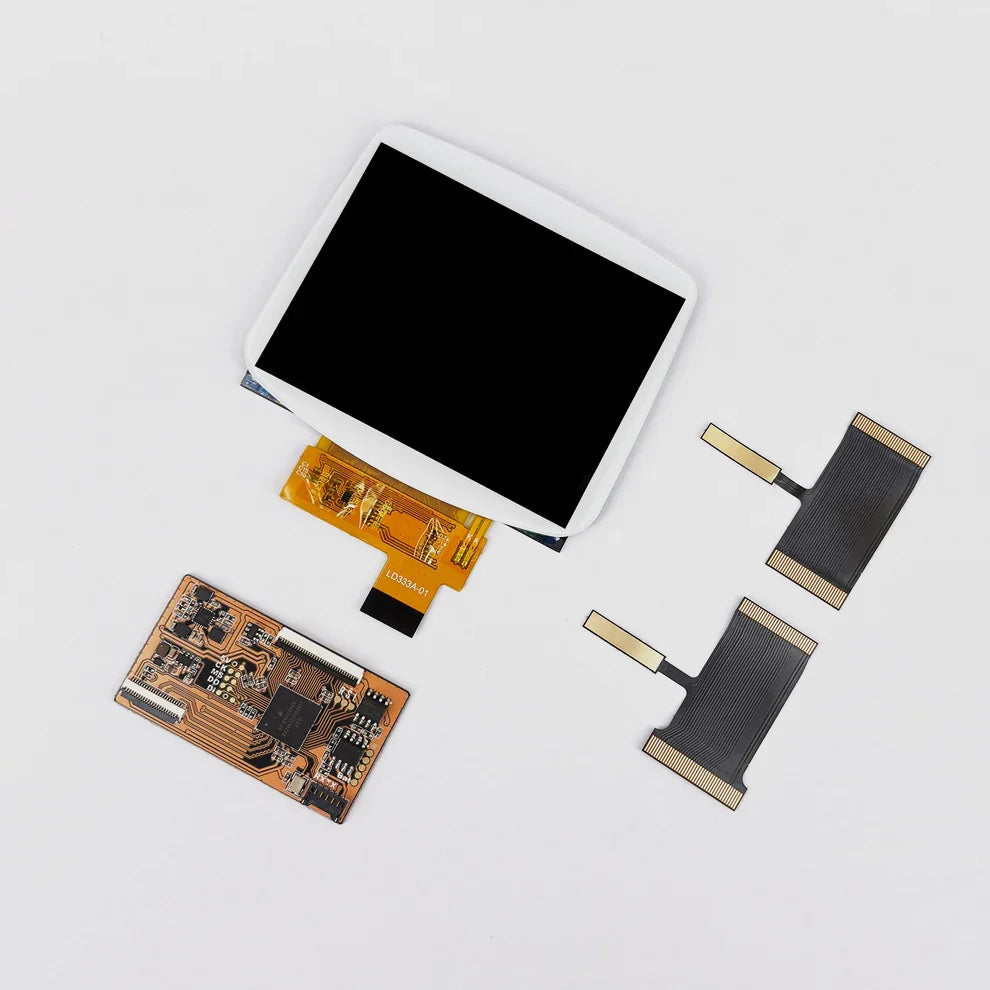

INCLUDED:

  • 1x AGB IPSGB IPS MAX fully laminated screen module
  • 1x Dedicated driver board
  • 2x 32/40PIN FPC cable
  • 3x Solder wire
  • 1x Logo Burner (board with USBC port and cable)

PAIRS WELL WITH:

DOCUMENTATION:

NOTES:

  • For a more accessible option for custom logo burning, consider purchasing the
  • AGB IPS MAX Battery Kit for Game Boy Advance  - Funnyplaying.
  • Requirements for burning logo production: The image should be in BMP format and the resolution should be 960*80.
  • Images uploaded can only be 4 or fewer colors. Otherwise, the burning process will report an error. Logos downloaded from other websites may also have more than 4 colors. In such cases, the burning process will also report an error.
  • Only pairs with this shell from FunnyPlaying made specifically for the LCD kit. Refunds/replacements are not accepted if the incorrect shell is used.

WARNINGS:

  • You do not need to purchase a separate lens. Removing pre-adhered lens from LCD can result in damage to the LCD and will void product warranty. If you received an extra lens in your order, this was likely a included plastic lens with a shell and should NOT be placed on top of the pre-adhered lens.
  • Test before installation! When you receive a backlight/LCD kit, you should perform a dry run before installing to assure that nothing has been damaged in transit. A dry run or test fit means the kit is not installed in the shell. This includes the use of adhesives, brackets, and any performed soldering. All ribbon cables should have no bends or creases in them. If you are unsure how to perform a dry run, please contact our support team and we will be happy to help. Backlight kits that have been installed are not eligible for replacement or return.
  • LCD may break if put under too much pressure or dropped. Please exercise extreme caution when installing.
